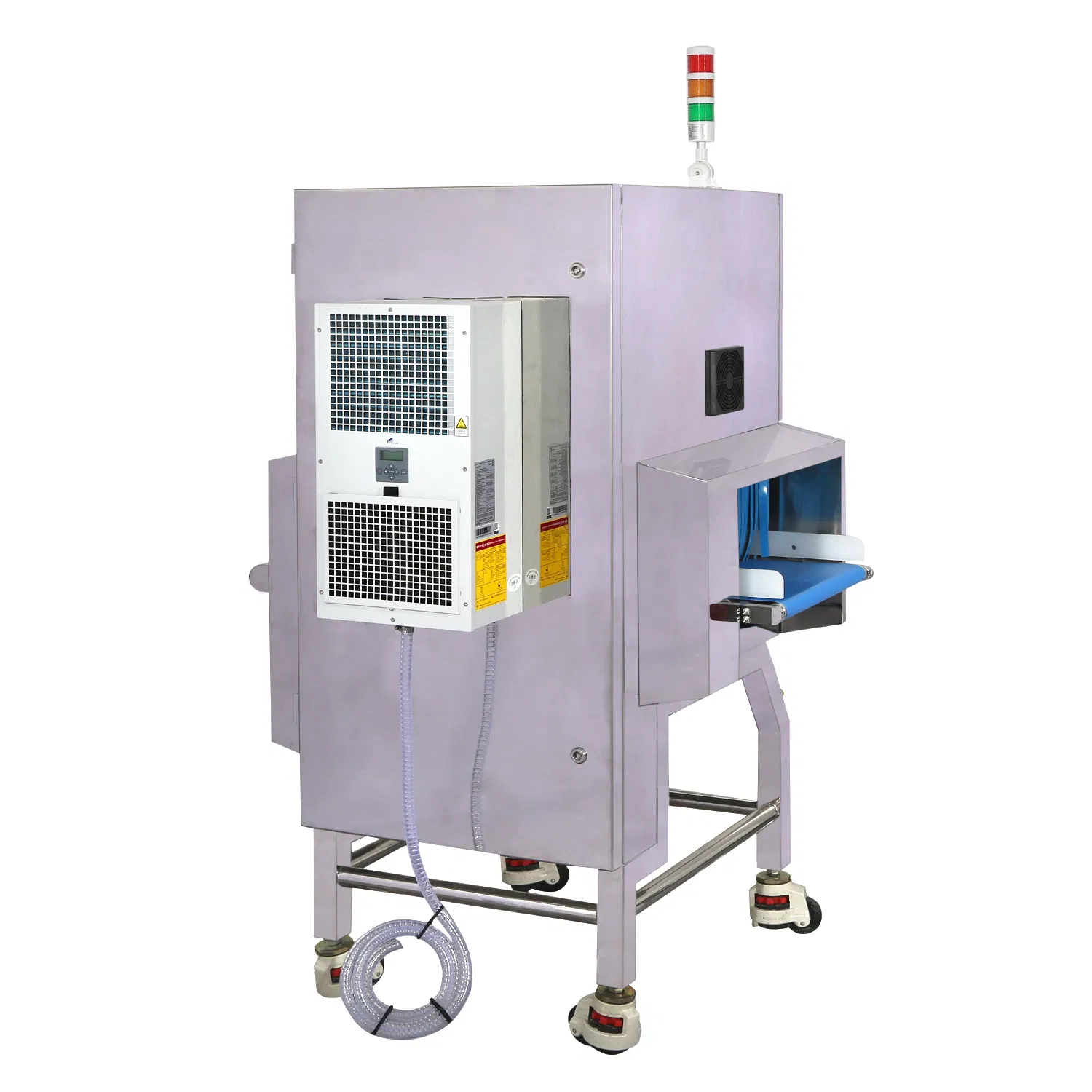

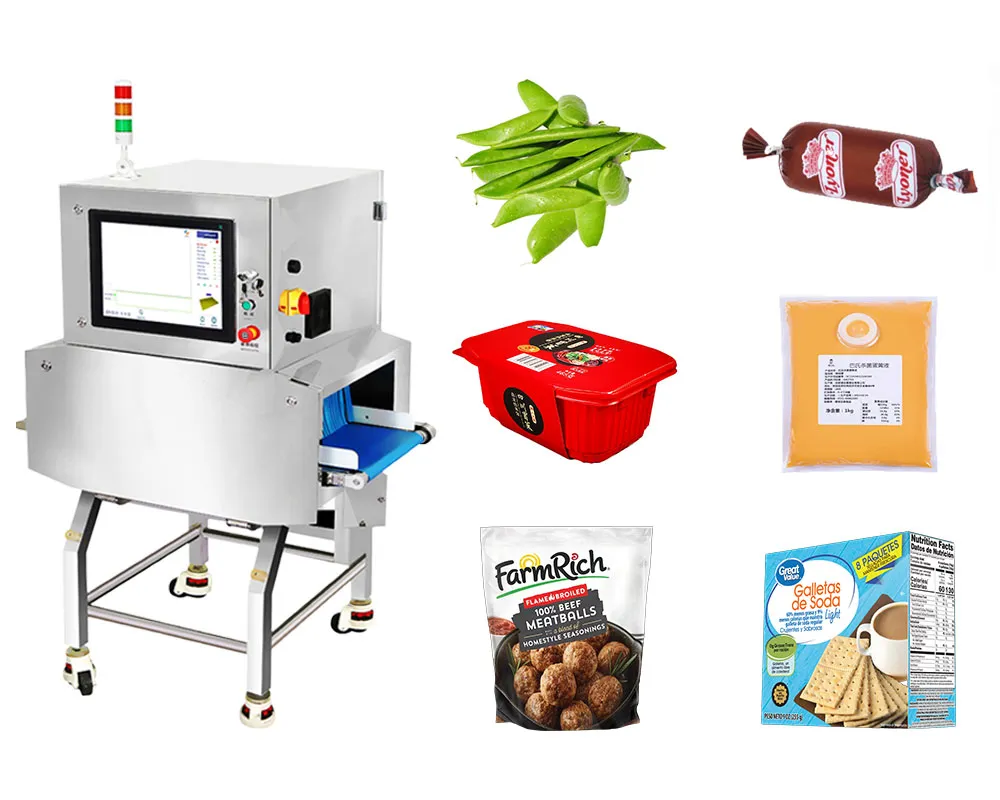

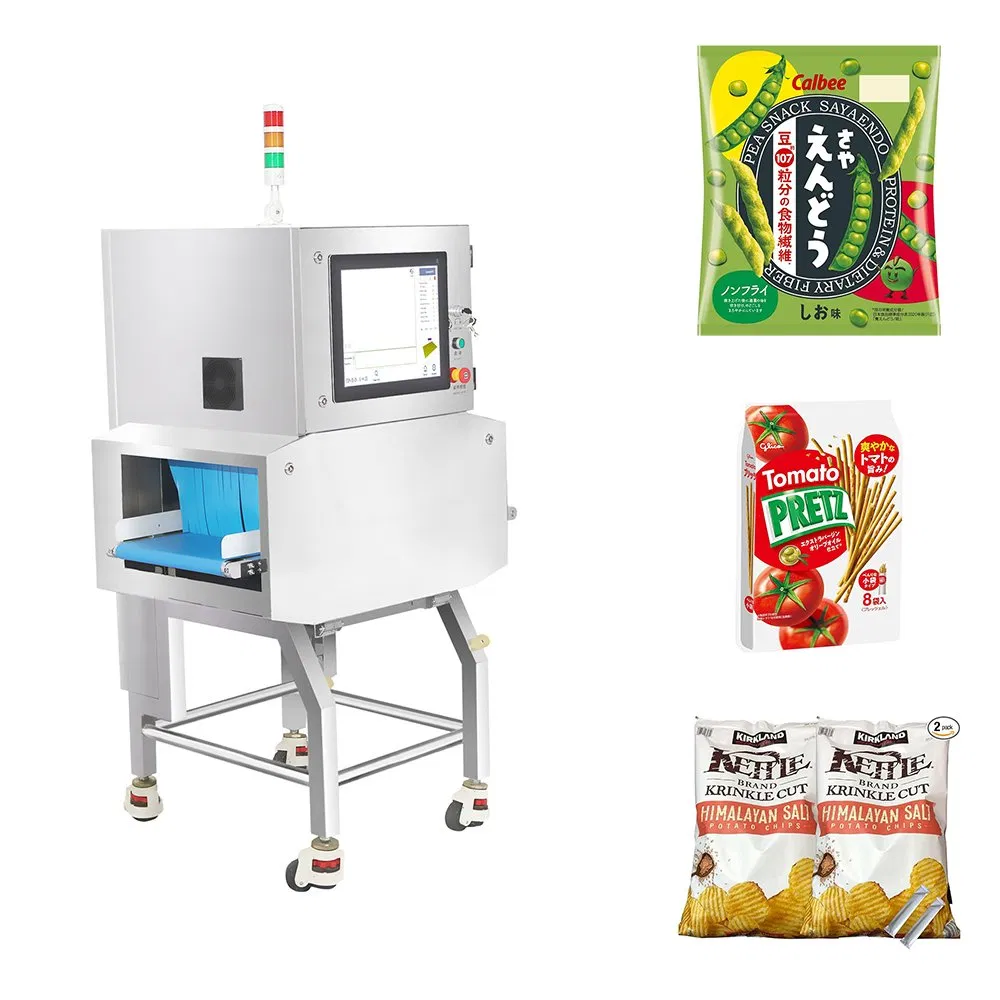

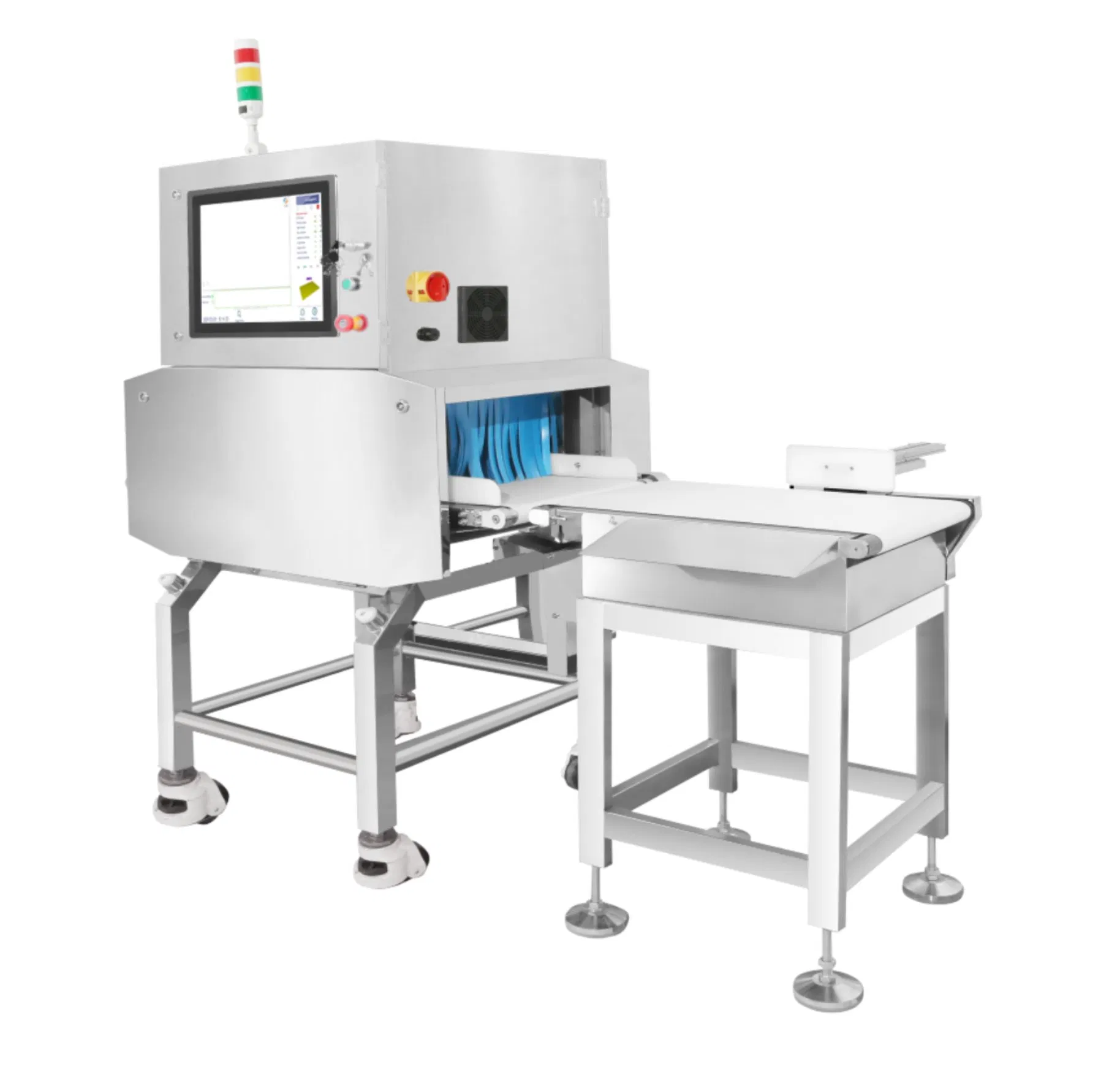

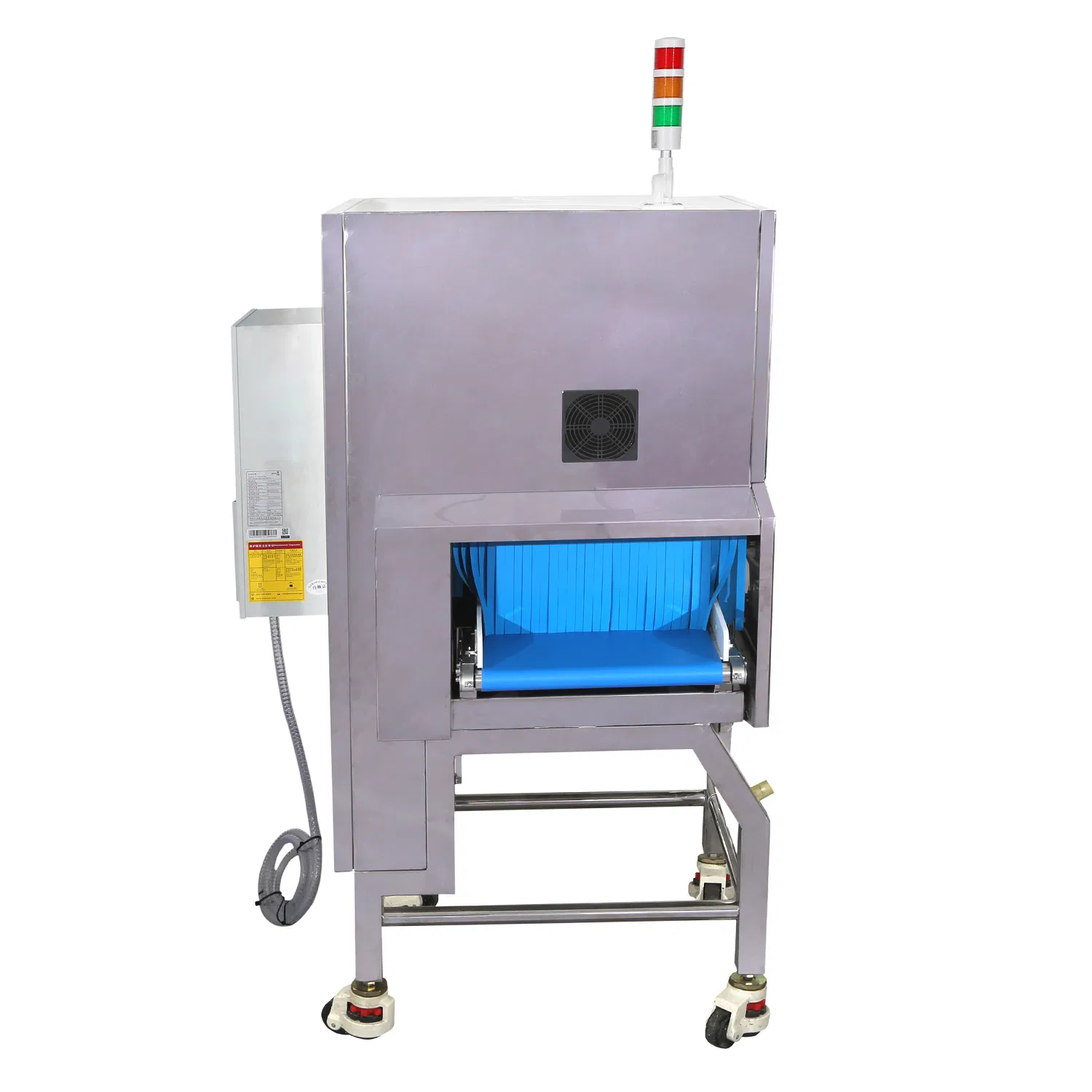

XR-500D High-End Digital X-Ray Inspection System
Introduction:
These X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers. Key features include:

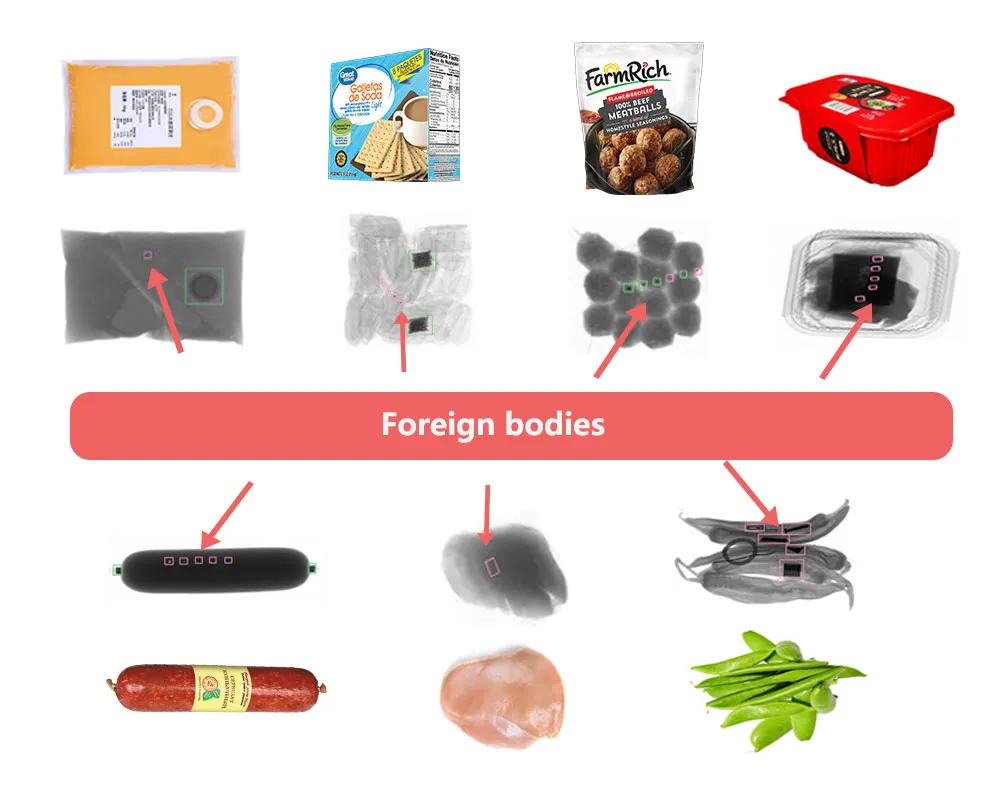

The XR-500D series is designed for detecting contaminants within small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic. It is effective even for products wrapped in aluminum foil or metallised film. Detection is based on density differences, allowing for the identification of extremely tiny foreign objects.
| Technical Specifications | |
|---|---|
| Model | XR-500D |
| X-ray source | Standard: 150W, 80kV (Optional: 350W, 100kV) |
| Tunnel size(W*H) | 440*200mm |
| Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying speed | 20-60 m/min |

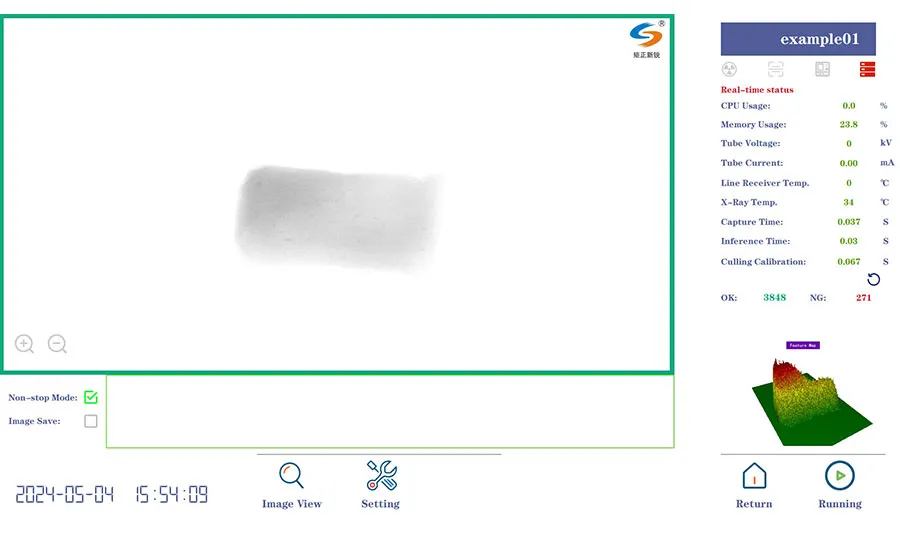

| Screen | 21.5 inch full color touch screen |
| Interface | LAN port, USB port |

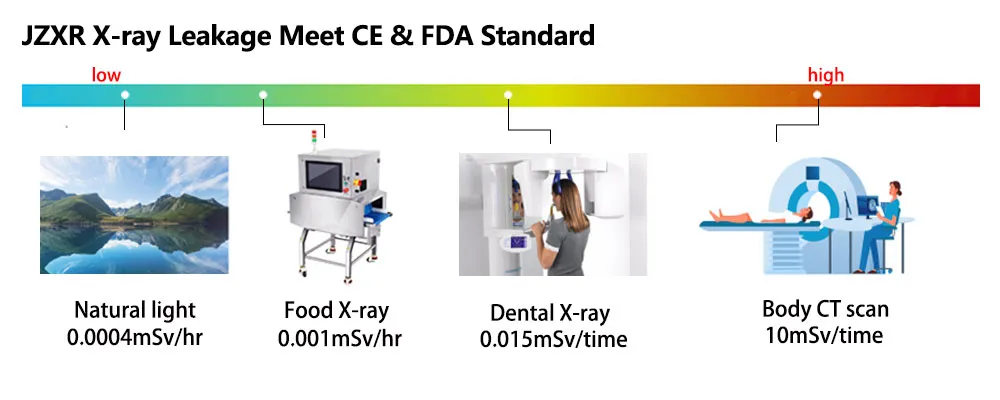

| X-ray leakage | <1µSv/hour |
| Protective mode | 6 layers of non-lead food grade soft curtain |
| Alarm | Standard: Sound and light alarm; Optional: Rejection system |
| Power supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

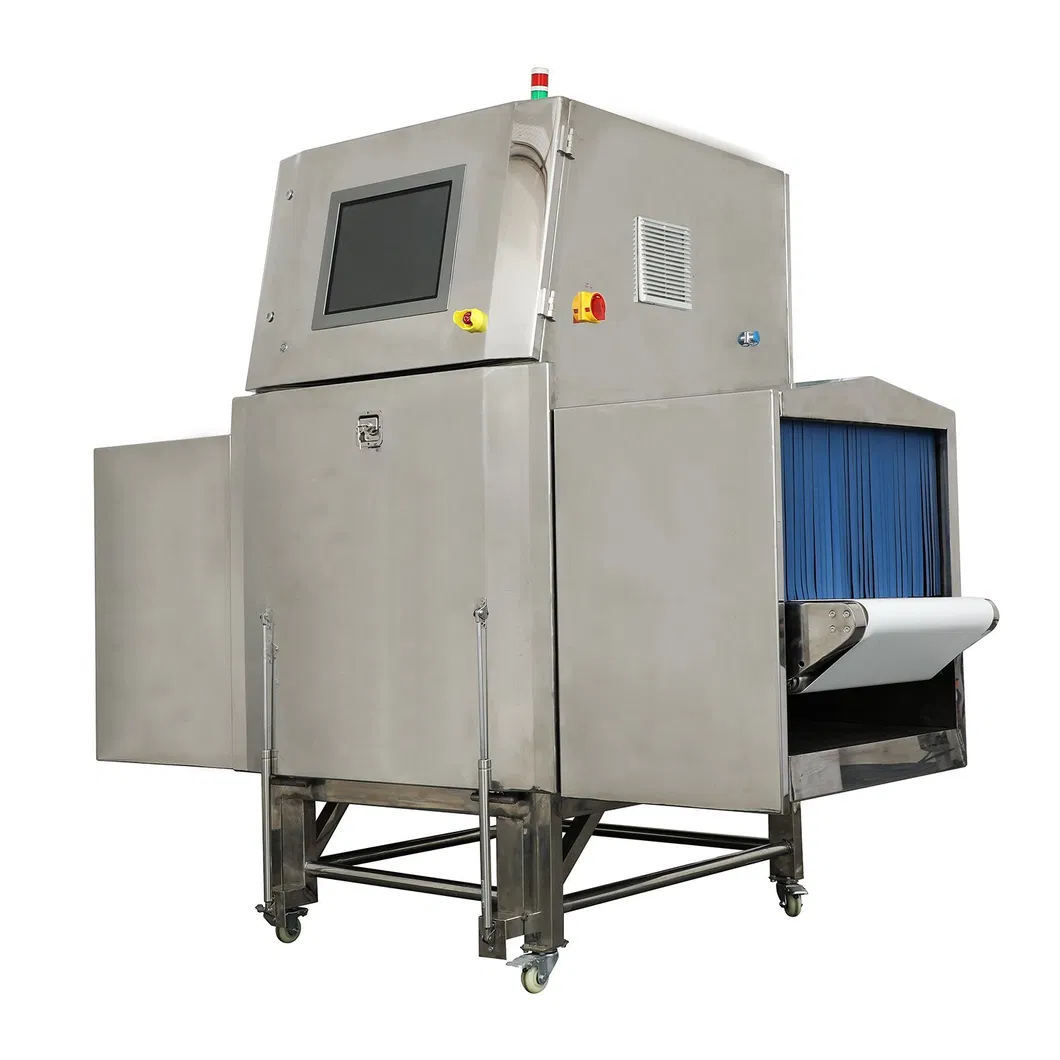

System for Big Packaged Food

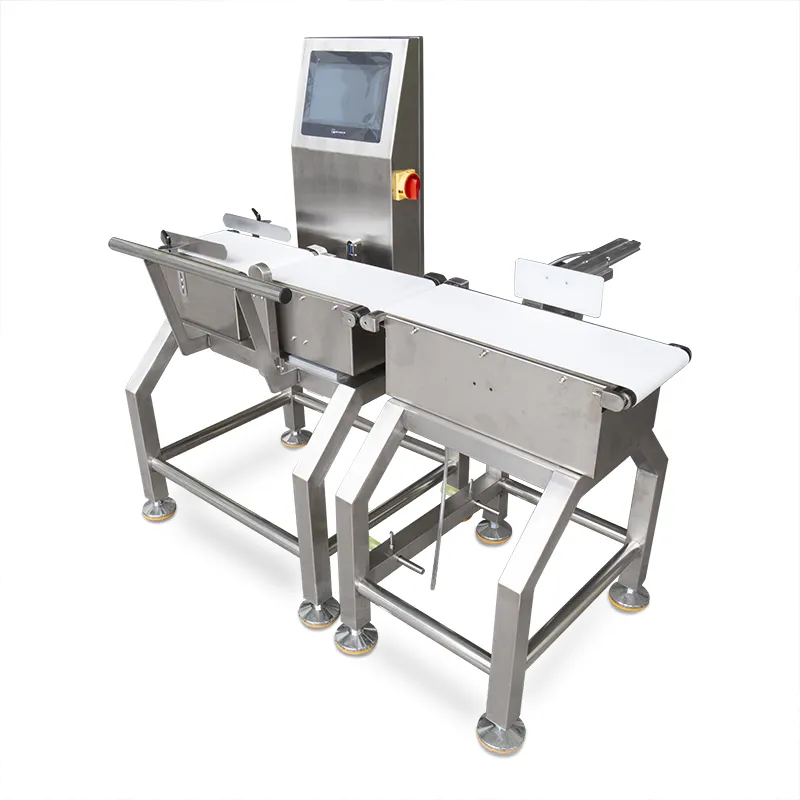

Precise Checkweigher

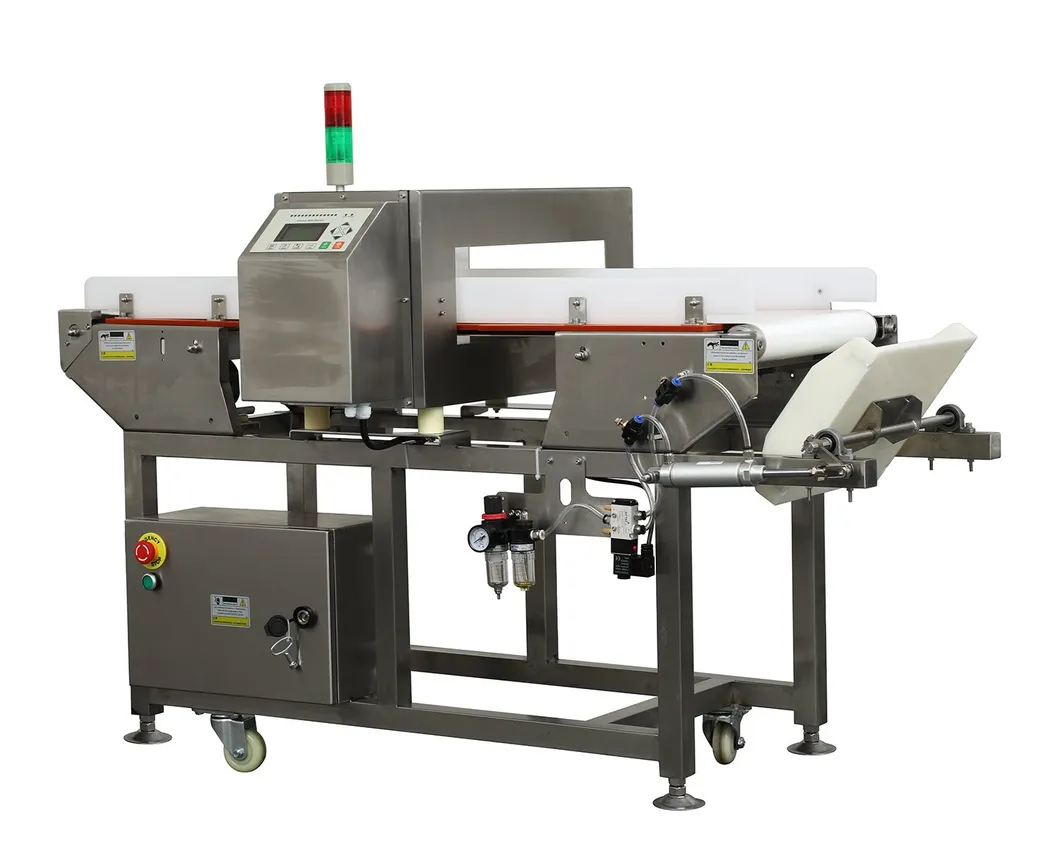

Conveyor Metal Detector

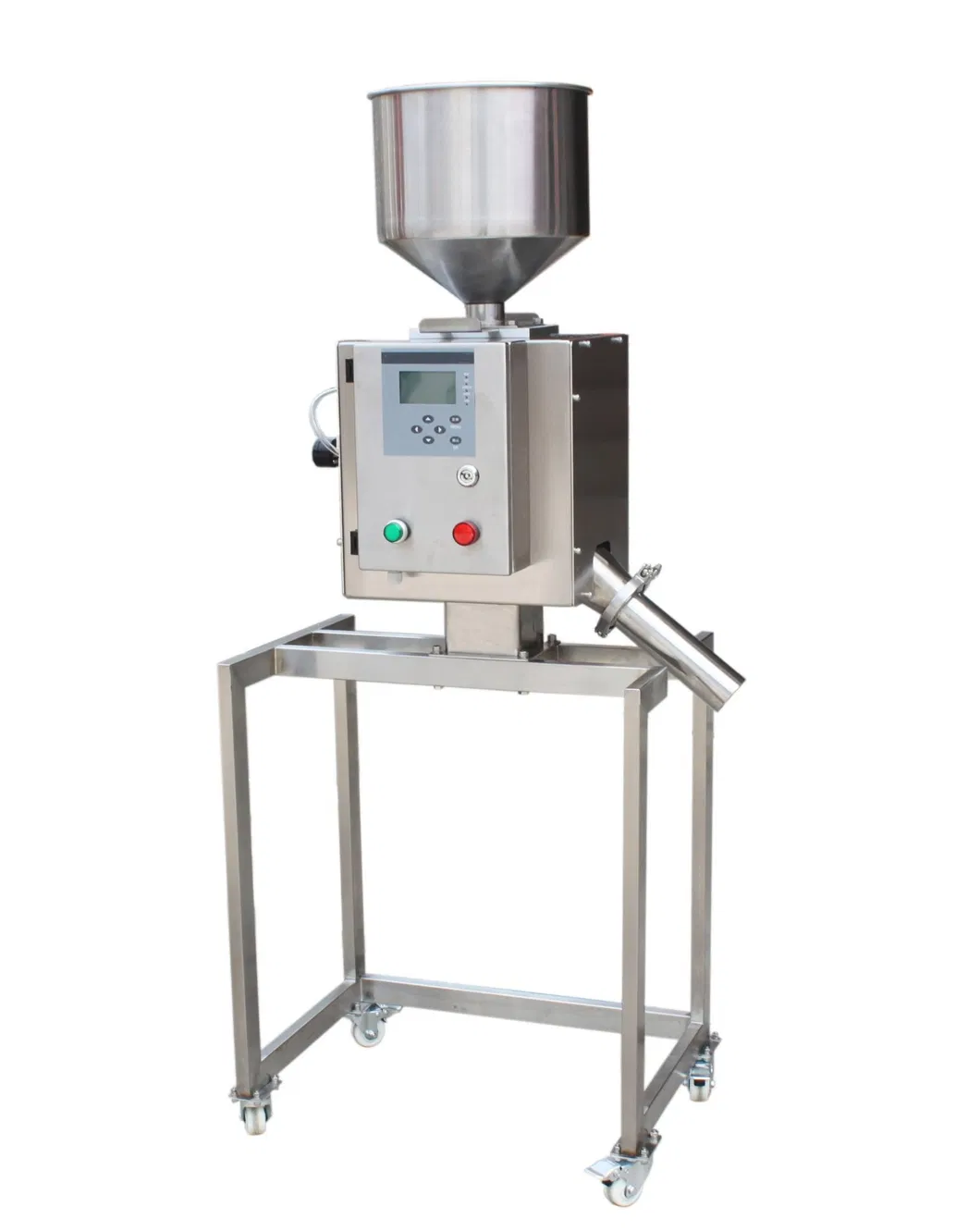

Vertical Fall Metal Detector
