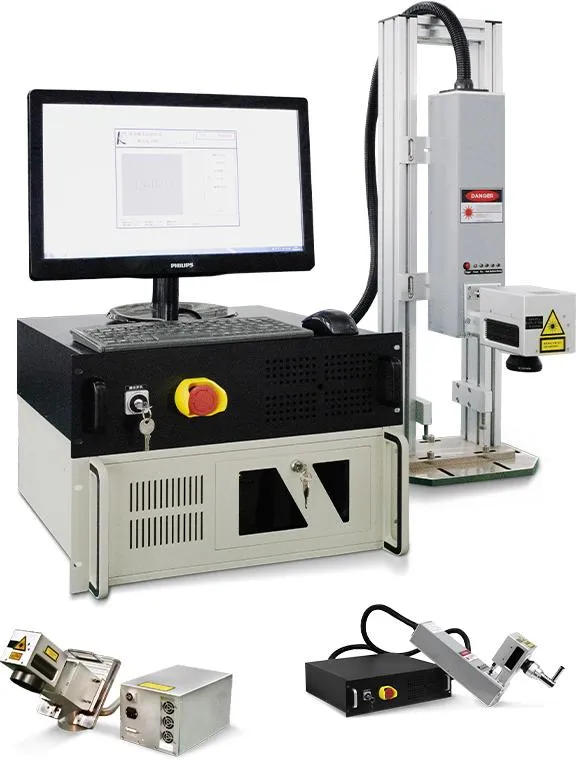

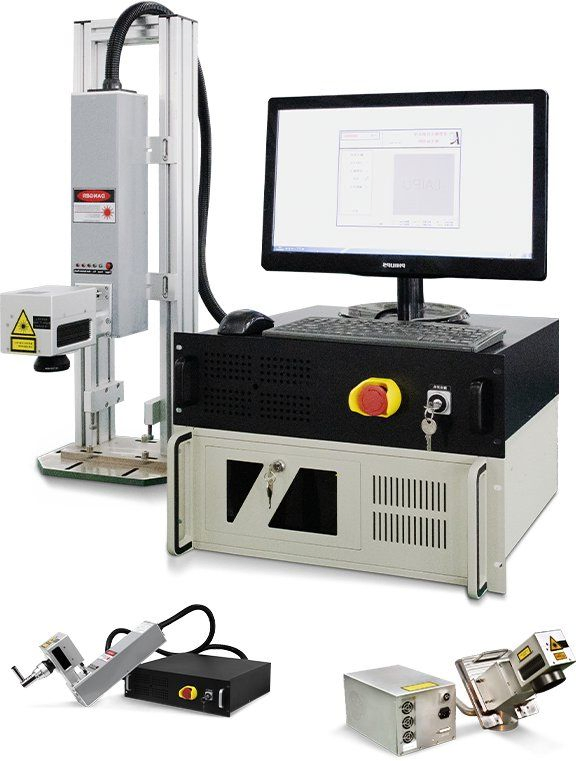

Advanced High-Precision Fiber Laser Marking System for Engraving

Customization:	Available
After-sales Service:	Provided
Condition:	New

Basic Information

Product Name

Fiber Laser High Speed Marking

Warranty

12 Months

Automatic Grade

Automatic

Installation

Vertical

Driven Type

Electric

Origin

China

Product Description

Key Features

Structure: One-piece, split, vertical, horizontal, etc., for all testers
High Reliability, long life fiber laser
Max. UPH up to 60K
Offline control mode, good stability
Supporting scanning barcode, hierarchical printing, automatic counting and statistics
Authority management and production management system docking

Application: In-line high-speed laser marking of various discrete devices.

Technical Specifications

Parameter	Specification
Laser power	5W/10W/20W/30W
Beam quality	M² < 1.05
Marking range	70×70mm / 50×50mm / 35×35mm (optional)
UPH	60K
Min. line width	0.02mm
Min. character height	0.15mm
Repetition accuracy	±0.01mm

Exhibition & Customers

Main Product Range: Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting (Glass Ceramics Wafers Packaging), Laser Internal Modification Machine (Si/Sic Wafer, Lt/Ln Wafer), Laser Annealing Machine, Automatic Dicing Saw Machine, Automatic Silicone Dispensing Equipment.

Packaging & Shipping

FAQ

Q1 How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q2 What is the warranty period for the equipment?

We provide a one-year warranty along with 24 hours online professional technical support to ensure your production runs smoothly.

Q3 What is the maximum production speed (UPH)?

The system supports a high-speed marking capability with a maximum UPH (Units Per Hour) of up to 60K.

Q4 What laser power options are available?

The equipment can be configured with different laser power outputs including 5W, 10W, 20W, and 30W depending on your specific engraving requirements.

Q5 Does the system support automated data integration?

Yes, it supports scanning barcodes, hierarchical printing, automatic counting and statistics, and can be docked with production management systems.

Q6 What is the precision level of this marking machine?

The machine offers exceptional precision with a repetition accuracy of ±0.01mm and a minimum line width of 0.02mm.
