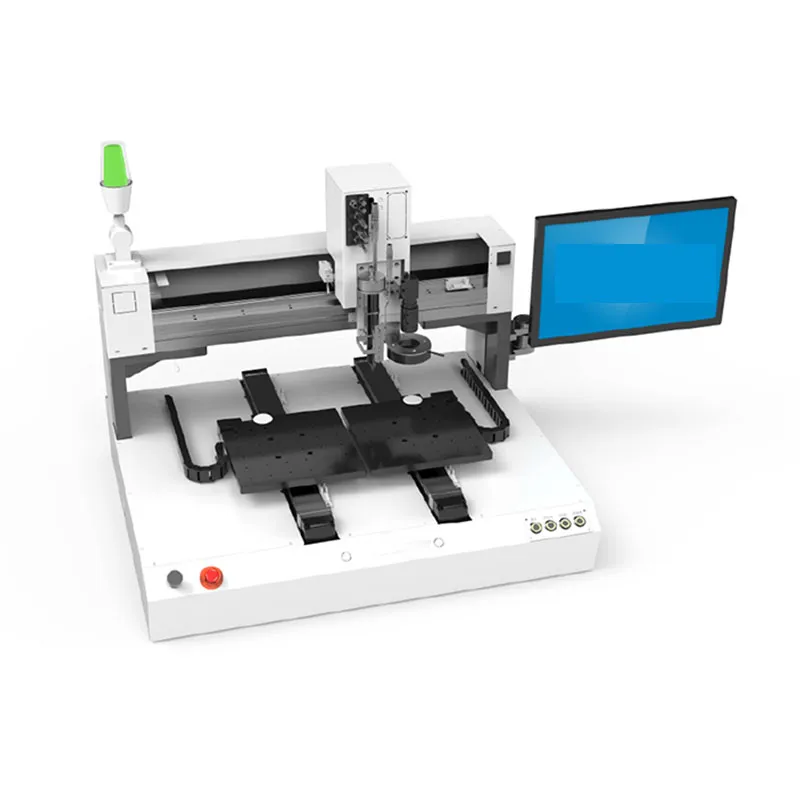

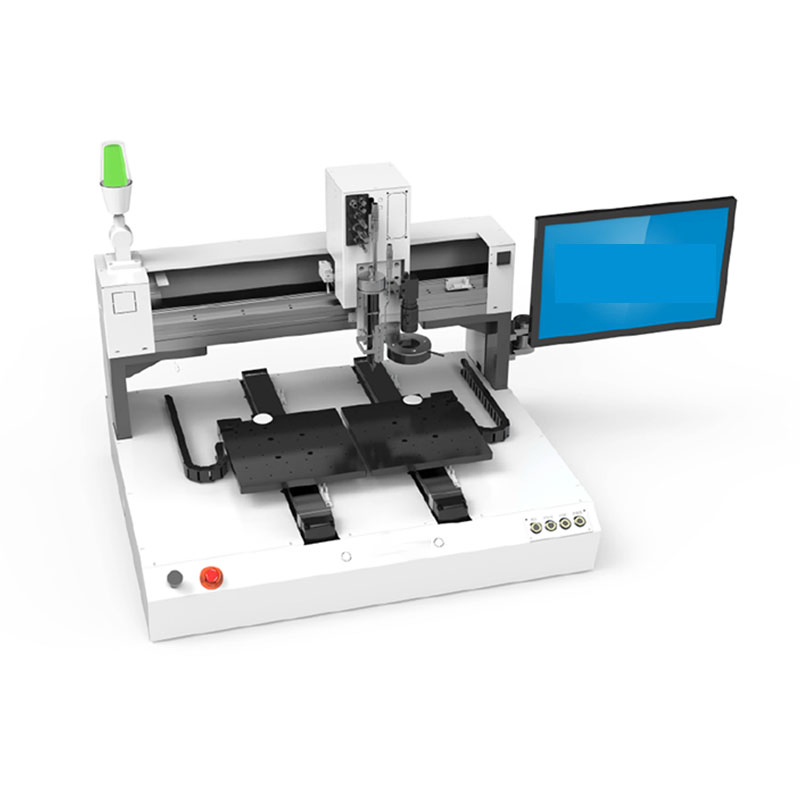

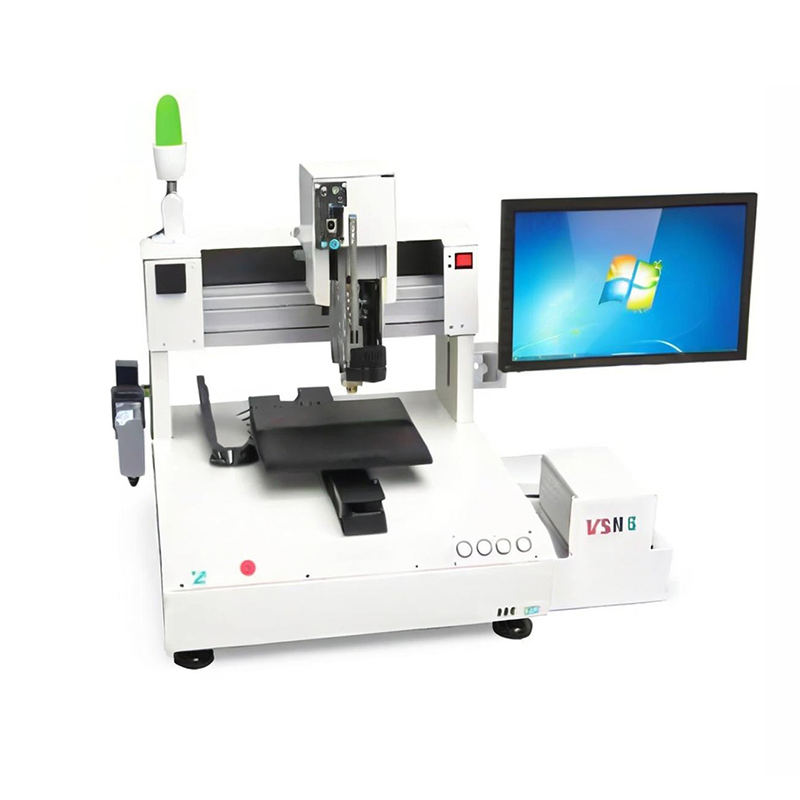

Advanced CCD Vision Silicone Dispensing System for Precision Applications

1 / 5

Advanced CCD Vision Silicone Dispensing System for Precision Applications

Customization:	Available
After-sales Service:	Provided
Precision:	High Precision

Send Inquiry

Product Description

Basic Information

Model NO.

F-02

Condition

New

Certification

ISO

Warranty

12 Months

Automatic Grade

Automatic

Installation

Desktop

Driven Type

Electric

Product Name

Dispensing Machine

Feature

CCD Vision, Customized Support

Origin

China

Product Description

Specifications	TSV-200D	HSV-200D
Dimension (mm)	L1120×W740×H760	L1200×W740×H146
Weight (kg)	100	130
Control System	Industrial PC + Motion Control Card
Software	Professional Control Software + Windows
Programming	Visual Programming
Spindle Drive	Servo Motor + Module
Working Area (mm)	X1/X2: 260; Y1/Y2: 260; Z: 100
Max Moving Speed	800 mm/s
Repeatability	± 0.025 mm
Cleaning Device	Vacuum Cleaning
Power Supply	220V 50/60Hz
Rated Power (kw)	1.3	1.5
Standard Functions	CCD visual positioning, Electrostatic interface, 232 scanner socket

Exhibition & Product Range

Operating in the semiconductor industry equipment sector, we have experience exporting to over 30 countries with a network of over 200 partners. We focus on providing cost-effective solutions and risk management for global procurement.

Our Primary Product Range Includes:

Die Bonder & Wire Bonding Systems
Laser Marking (ID IC Wafer) & Laser Grooving
Laser Cutting for Glass, Ceramics, and Wafers
Laser Internal Modification Machines (Si/Sic, Lt/Ln Wafers)
Laser Annealing Machines
Automatic Dicing Saw Machines
Automatic Silicone Dispensing Equipment

Packaging & Shipping

Frequently Asked Questions

How do I choose the most suitable machine?

You can specify the material of your workpiece, its dimensions, and the required functions. Based on our extensive experience, we will recommend the configuration that best fits your production needs.

What is the warranty period for this equipment?

We provide a one-year warranty along with 24-hour online professional technical support to ensure your operations run smoothly.

What type of control system does the machine use?

The system utilizes an industrial personal computer paired with a high-precision motion control card and professional control software running on Windows.

Is the dispensing process precise?

Yes, the machine features CCD visual positioning and servo motor drives, achieving a repeatability of ± 0.025 mm for high-precision applications.

How is the equipment packaged for international shipping?

The equipment is typically secured in customized wooden boxes to prevent damage during transit and ensure it arrives in perfect condition.

Does the machine include a cleaning function?

Yes, the system is equipped with a standard vacuum cleaning device for the valve nozzle to maintain consistent performance and hygiene.
