High-Precision Desktop LED Glue Dispensing System for Windows

Customization:	Available
After-sales Service:	Free Training
Precision:	High Precision

Send Inquiry

Product Description

📊 Overview - Basic Info

Model NO.	TSV-200D/HSV-200D	Condition	New
Certification	RoHS, ISO, CE	Warranty	12 Months
Automatic Grade	Automatic	Installation	Desktop
Driven Type	Electric	Product Name	Automatic Glue Dispensing Machine
Feature	Guaranteed Quality, Customized According to Needs	Origin	China

⚙️ Product Description

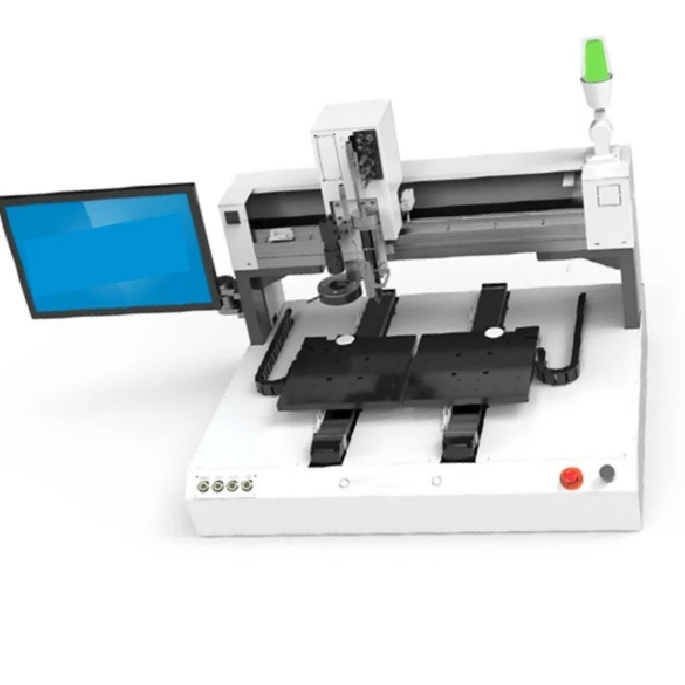

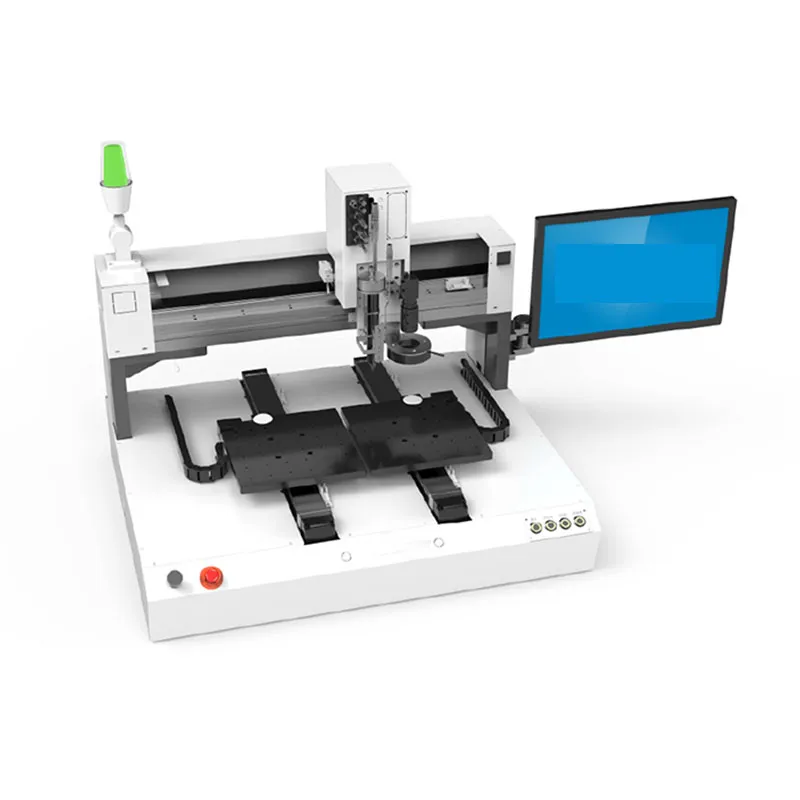

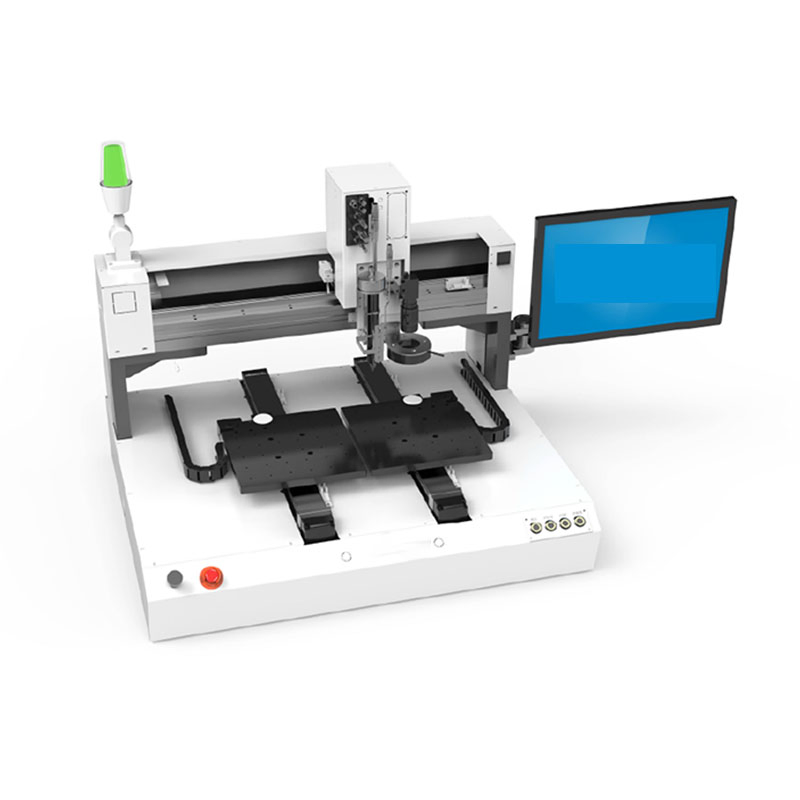

Desktop LED Automatic Glue Dispensing Machine utilizing Windows system control software for high-precision factory applications.

High-Precision Desktop LED Glue Dispensing System

Specifications	TSV-200D	HSV-200D
Dimension (mm)	L1120×W740×H760	L1200×W740×H146
Weight (kg)	100	130
Control System	Industrial computer + motion control card
Software	Professional control software + Windows system
Programming	Visual programming
Working Area (mm)	X1 X2: 260; Y1 Y2: 260; Z: 100
Max Moving Speed	800 mm/s
Repeatability	± 0.025 mm
Power Supply	220V 50/60Hz
Standard Functions	CCD visual positioning, Electrostatic interface, 232 scanner socket

🤝 Exhibition & Customers

Established in 2019, we are mainly engaged in international trade and integration of semiconductor industry equipment. The equipment is currently exported to over 30 countries, serving over 200 customers and suppliers, aiming to provide the most cost-effective products with risk avoidance solutions.

Main products include: Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting (Glass Ceramics Wafers Packaging), Laser Internal Modification Machines, Laser Annealing Machines, Automatic Dicing Saw Machines, and Automatic Silicone Dispensing Equipment.

📦 Packaging & Shipping

❓ FAQ

Q1: How to choose a suitable machine?

You can share the workpiece material, size, and required functions. We will recommend the most suitable machine based on our extensive industry experience.

Q2: What is the warranty period for the equipment?

We provide a one-year warranty along with 24-hour online professional technical support to ensure your production stays on track.

Q3: Do you provide OEM or ODM services?

Yes, we offer comprehensive OEM, ODM, and custom design services to meet specific industrial requirements.

Q4: What control system does the glue dispensing machine use?

The machine is equipped with an industrial personal computer combined with a motion control card, running on a stable Windows-based control software.

Q5: Is the dispensing process high-precision?

Yes, the system features CCD visual positioning and achieves a repeatability of ± 0.025mm, suitable for high-precision LED and semiconductor applications.

Q6: How is the equipment cleaned?

The machine includes a standard vacuum cleaning device for the valve nozzle to maintain consistent coating quality and prevent clogs.
