Precision Laser Wafer Marking System for 8-Inch and 12-Inch Sizes

Customization:	Available
After-sales Service:	Provided
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

HDZ-FPC4530D

Laser Visibility

Visible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

UV Laser, CO2 Laser

Type

Semiconductor Laser Marking Machine

Marking Method

Scanning Marking

Product Name

PCBA & IC & Wafer Marking Machine

Feature

High Precision & Efficiency

Product Description

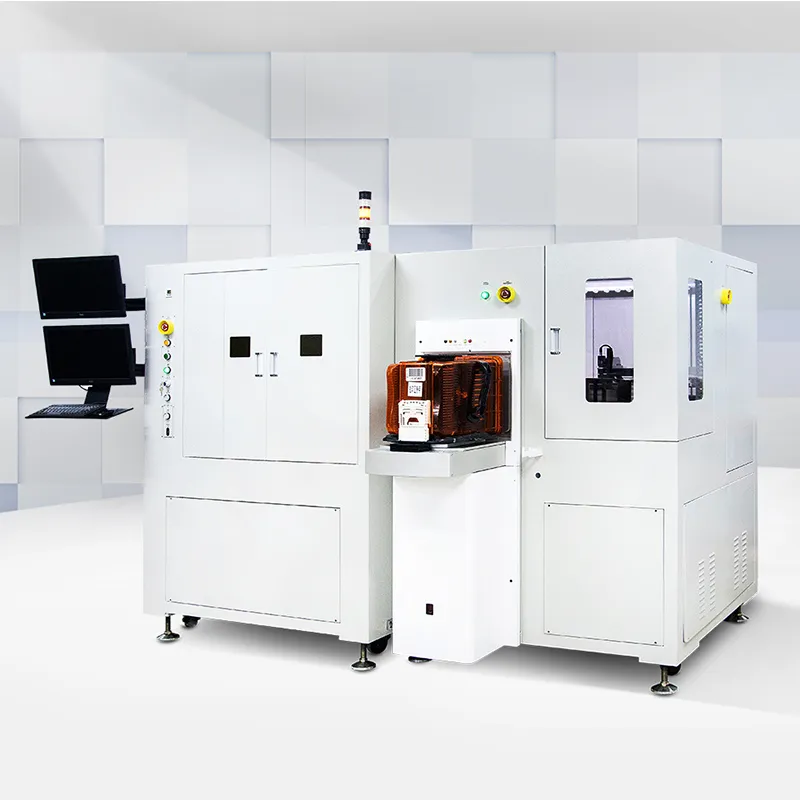

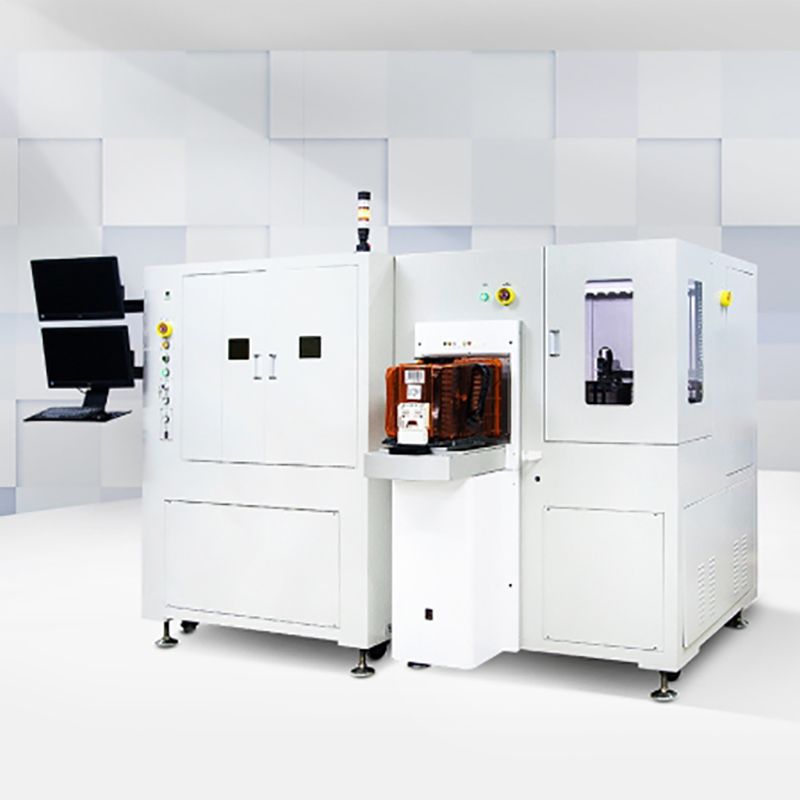

High Quality Automatic 8-Inch/12-Inch Green Laser or UV Laser Wafer Marking Machine

Brief Description:
Applicable for the 6-inch, 8-inch and 12-inch wafer marking.

Key Features

✓
Fine focusing spot with Green or UV laser, providing non-contact marking.
✓
Fully-automatic loading/unloading and edge searching for high efficiency.
✓
Advanced computer control with Windows-based English interface software.
✓
High automation level including automatic fault alarm functions.
✓

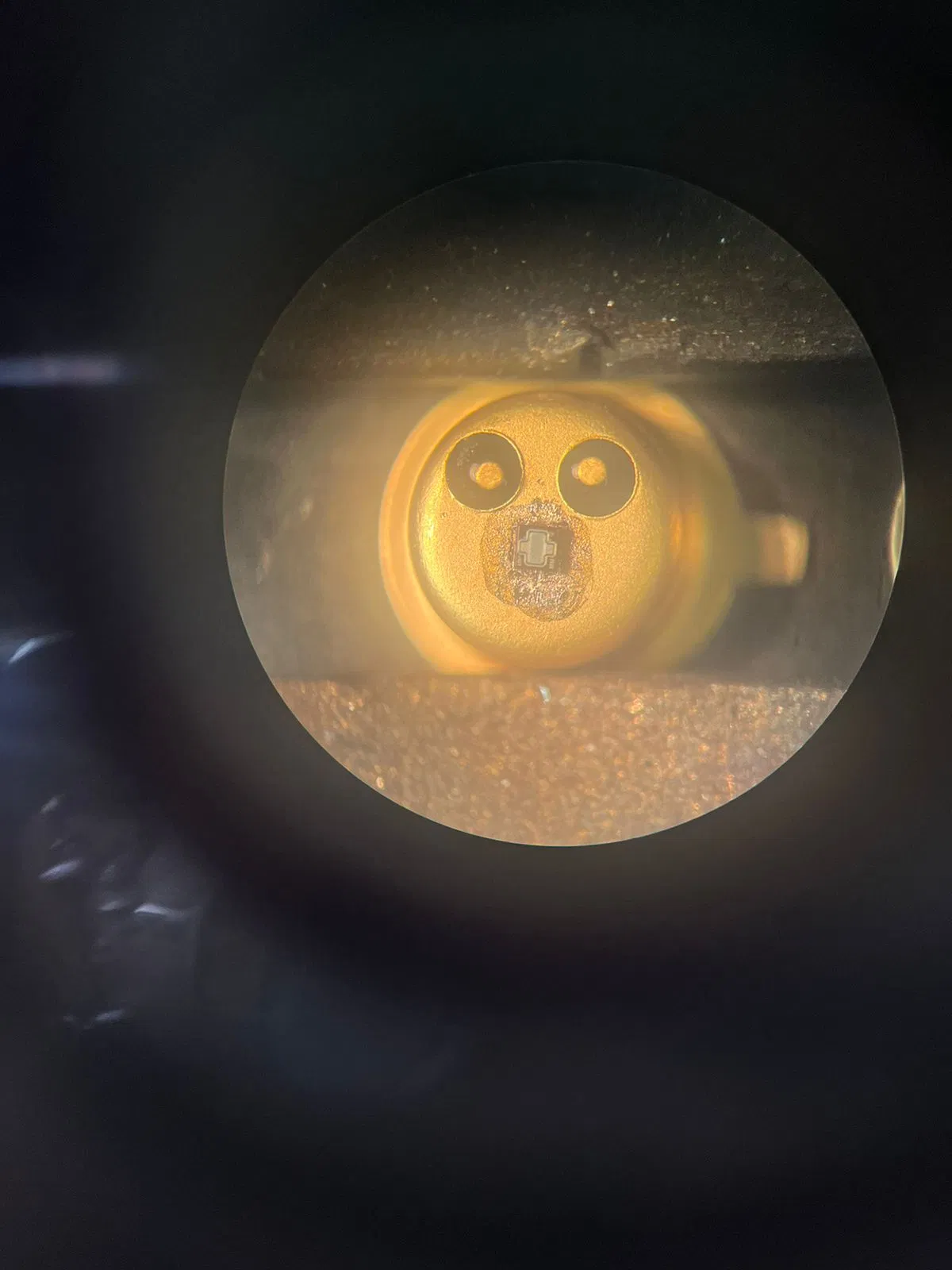

Precise marking specifically designed for product DIE.

Technical Specifications

Machine Model	HDZ-WAF500	HDZ-WAF600
Laser Type	Fiber laser, CO2 (optional)	UV, green light (optional)
Laser Power	Fiber 20W, CO2 10W	UV 7W, green light 10W
Cooling Mode	Air cooling	Water cooling
Positioning Precision	±0.2mm	±0.05mm
Product Type	2, 4, 6 inch wafer	6, 8, 12 inch wafer
Power Supply	220V, 50Hz	220V, 50Hz

Exhibition & Capability

Our equipment is currently exported to over 30 countries, serving over 200 customers and suppliers globally. We focus on providing high cost-effective products and ensuring risk avoidance in procurement.

Available Product Range:
Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting (Glass Ceramics Wafers), Laser Internal Modification Machine, Laser Annealing Machine, Automatic Dicing Saw, and Silicone Dispensing Equipment.

Packaging & Shipping

Frequently Asked Questions

How to choose a suitable machine?

You can share your working piece material, size, and required functions. We will recommend the most suitable machine based on our extensive industry experience.

What is the warranty period for the equipment?

We provide a one-year warranty along with 24-hour online professional technical support to ensure your production remains uninterrupted.

Why choose our solutions?

We offer comprehensive OEM/ODM and customized design services to meet specific semiconductor processing requirements.

What materials can be processed?

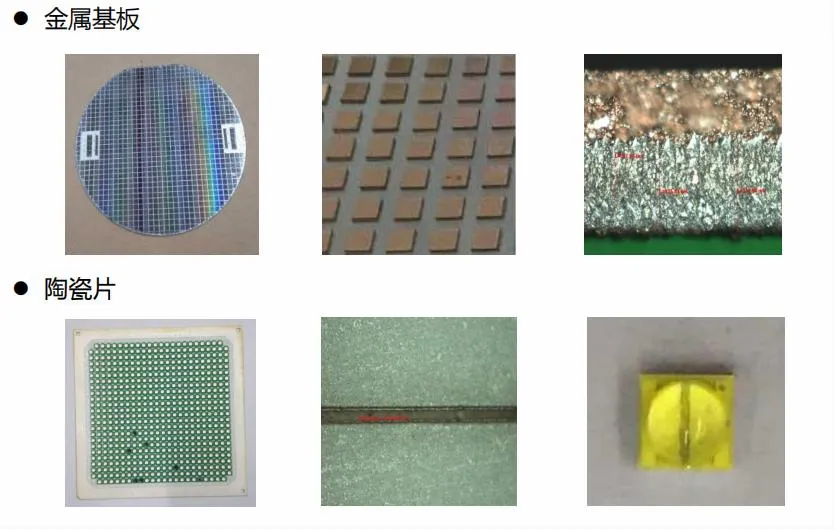

This equipment is primarily designed for Wafer, IC, and PCBA marking, and is compatible with various metals and semiconductor materials.

Does the system support English interface?

Yes, the whole system adopts computer control with a Windows operation platform and a fully English user interface for easy operation.

What kind of packaging is used for shipping?

All machines are packed in customized, high-strength wooden boxes to ensure safety during international transit.
