Advanced Qt-6000 Testing System for Peak Device Performance

Customization:	Available
After-sales Service:	Provided
Condition:	New

Basic Information

Model NO.

QT-6000

Warranty

12 Months

Automatic Grade

Automatic

Installation

Vertical

Driven Type

Electric

Product Name

High-Speed Testing System

Feature 1

High-Speed Test

Feature 2

LCR Accurate Capacitance Test

OEM/ODM

Provided

Origin

China

Product Description

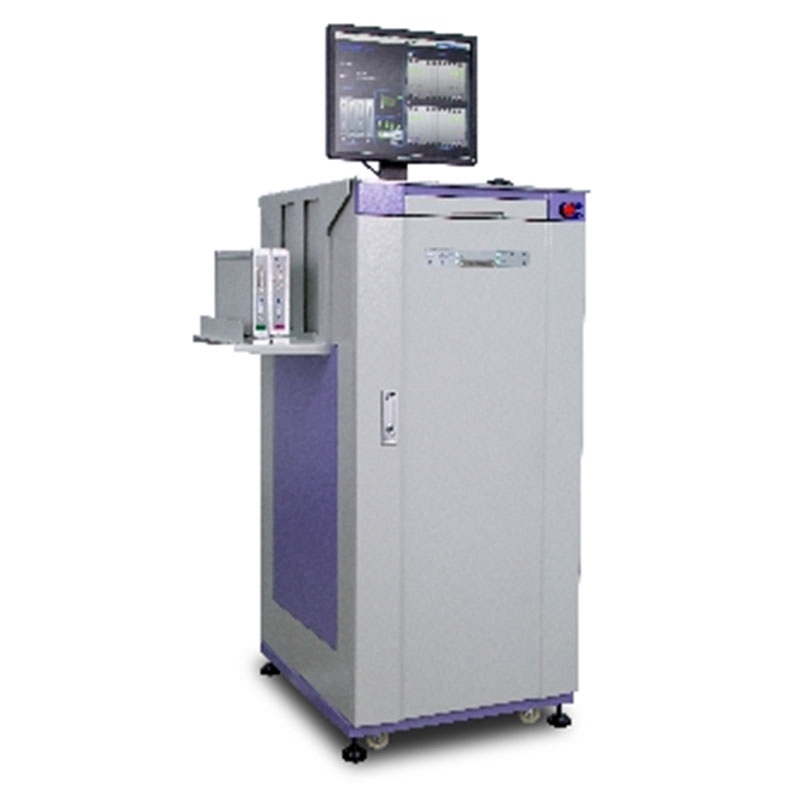

Discrete Device Test System QT-6000

The QT-6000 test system is applied to test small and medium-sized power triode diode MOS-FET(IGBT) and wafer etc. The updated system covers built-in capacitance (DC+CAP) and Scanbox tests.

Key Characteristics

High-speed test, UPH > 40K
One for two to achieve 100% FT+QA parallel test
Advanced capacitor high-speed test program to achieve CAP+DC same-station test
Built-in UIS test program to achieve DC+UIS same-station test
LCR accurate capacitance test, the minimum test capacitance value is 100fF

Major Technical Parameters

Measurement Accuracy	Current: < 0.5% Reading + 0.05% FullRange + 1.5nA Voltage: < 0.5% Reading + 0.05% FullRange + 1.5mV Capacitance: 0.5% Reading + 0.05% FullRange + 10fF
Technical Indicator	Max Current/Voltage: 30A / 1200V Capacitance Measurement Range: 0.2-300pF (BIAS voltage range 0~80V, 1MHz) LCR Measurement Range: 0.1pF-0.1uF (DC Bias: 0-30V, 1MHZ)
DPI	16 bit ADC/DAC
Waveform	Built-in oscilloscope

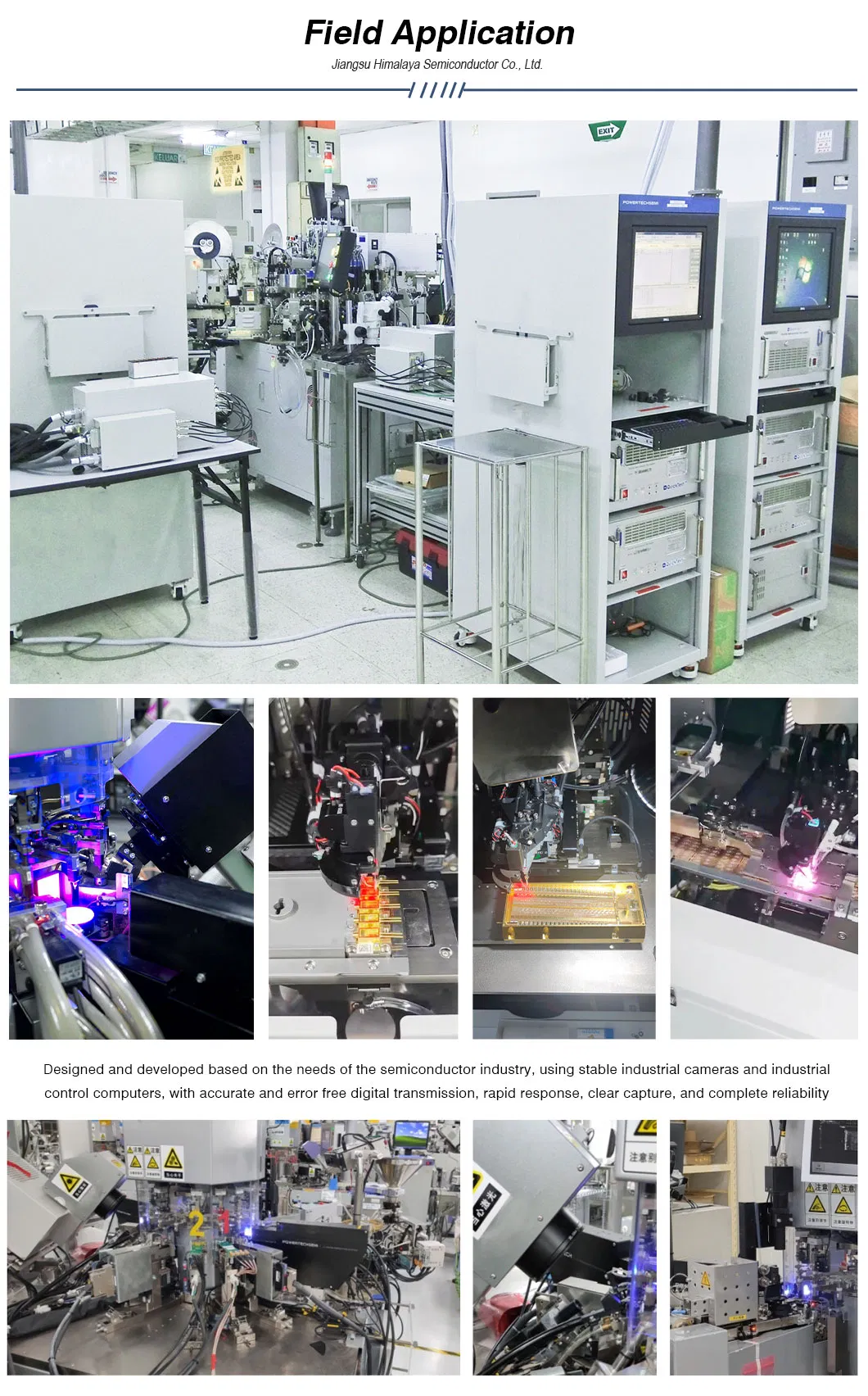

Applications

Industry Presence & Capability

Established in 2019, the operation focuses on international trade and integration of semiconductor industry equipment. Products are exported to over 30 countries with a customer base of over 200, aiming to provide high cost-effective solutions and risk avoidance for partners.

Main Product Range: Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting, Si/SiC Laser Annealing Machine, Automatic Dicing Saw Machine, and Silicone Dispensing Equipment.

Packaging & Shipping

FAQ

How to choose a suitable machine?

You can share the working piece material, size, and your functional requirements. Based on our industry experience, we will recommend the most suitable machine for your needs.

What is the warranty period for the equipment?

We provide a one-year warranty along with 24-hour online professional technical support to ensure your operations run smoothly.

What types of devices can the QT-6000 test?

The system is designed to test small and medium-sized power triodes, diodes, MOS-FETs (IGBT), and wafers.

What is the testing speed of the QT-6000 system?

The system offers high-speed testing capabilities with a UPH (Units Per Hour) exceeding 40K.

Does the system support capacitance testing?

Yes, it features an advanced high-speed test program that achieves CAP+DC same-station testing with a minimum test value of 100fF.

What are the maximum voltage and current limits?

The QT-6000 supports a maximum current of 30A and a maximum voltage of 1200V.
