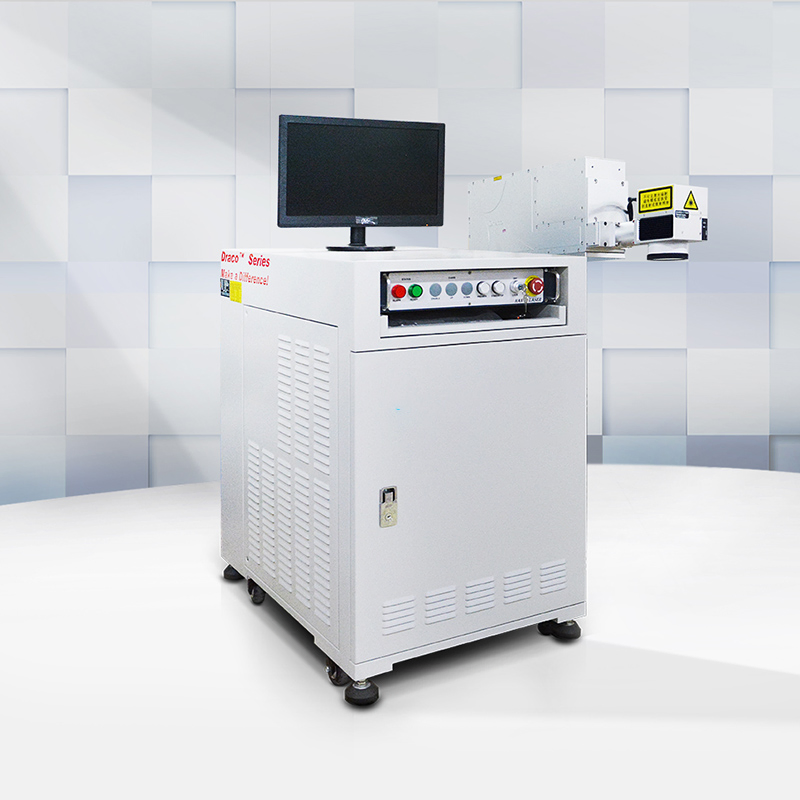

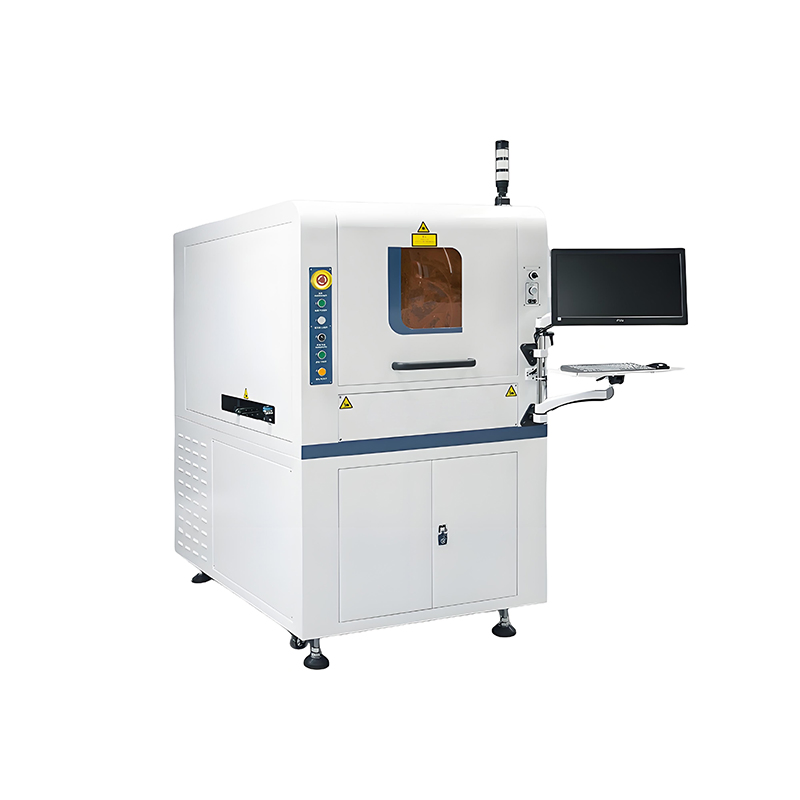

High-Precision UV Laser Marking System for PCB Applications

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Send Inquiry

Product Description

Basic Information

Model NO.

EP-15-THG-S

Laser Visibility

Visible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Fiber Laser

Laser Classification

Semiconductor Laser

Type

YAG Laser Marking Machine

Marking Method

Scanning Marking

Product Name

UV Laser Marking

Origin

China

Product Description

📌 Brief Description

Marking of electronic products' LOGO, model, and origin.
Marking of food, PVC pipe, medicine packaging material (HDPE, PO, PP, etc.).
Micro-hole drilling with diameter d≤10μm.
High-precision PCB marking and cutting.

⭐ Key Features

Cold laser processing with a small heat-affected zone for high-quality results.
Wide applicable materials range to complement infrared laser capabilities.
Excellent beam quality and small focusing spot for superfine marking.
High marking speed, high efficiency, and high precision.
No consumables, resulting in low cost and low maintenance fees.
Stable performance supporting long-term industrial operation.

Technical Specifications

Machine model	EP-15/25/30-THG-S
Laser wavelength	355nm
Laser power	4W / 7W / 10W /15W / 25W
Min. marking line width	10µm-15µm
Marking speed	250 characters/sec
Marking scope	100*100mm
Standard lens	F160
Pulse repetition frequency	10-200kHz
Cooling mode	Water cooling
Power supply	AC 220V, 50Hz, 16A
Total power consumption	≤1.5kW
Overall dimension	800mm950mm1630mm

Exhibition & Industrial Application

Our solutions focus on the integration of advanced semiconductor industry equipment. We serve hundreds of customers and suppliers globally, aiming to provide high cost-effective products and risk-free procurement solutions. Main equipment categories include Die Bonders, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting for Glass/Ceramics/Wafers, and Automatic Dicing Saw Machines.

Packaging & Shipping

Standard wooden box packaging or customized solutions are provided to ensure the equipment's safety during international transport.

Frequently Asked Questions

How to choose a suitable machine?

You can share your workpiece material, size, and required functions with us. Based on our extensive experience, we will recommend the most suitable machine for your needs.

What is the warranty period for the equipment?

We provide a one-year warranty along with 24-hour online professional technical support to ensure your operations run smoothly.

What materials can this UV laser mark?

It is highly effective on metals, PVC pipes, PCB, and medicine packaging materials such as HDPE, PO, and PP. It is also suitable for micro-hole drilling.

Does the machine require many consumables?

No, this UV laser marking machine is designed for efficiency with no consumables required, resulting in low operating costs and minimal maintenance.

What are the advantages of "Cold Laser" processing?

Cold laser processing significantly reduces the heat-affected zone, which prevents material deformation and allows for superfine marking on heat-sensitive materials.

Is the machine suitable for 24/7 industrial production?

Yes, the overall machine has stable performance and robust cooling, supporting long-term, continuous industrial operation.
