Effortless Silicone Dispensing System for Seamless Product Delivery

Customization:	Available
After-sales Service:	Provided
Precision:	High Precision

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TSV-300

Condition

New

Certification

RoHS, ISO, CE

Warranty

12 Months

Automatic Grade

Automatic

Installation

Desktop

Driven Type

Electric

Product Name

Dispensing Machine

Features

High Precision, High Efficiency

Origin

China

🚀 Product Description

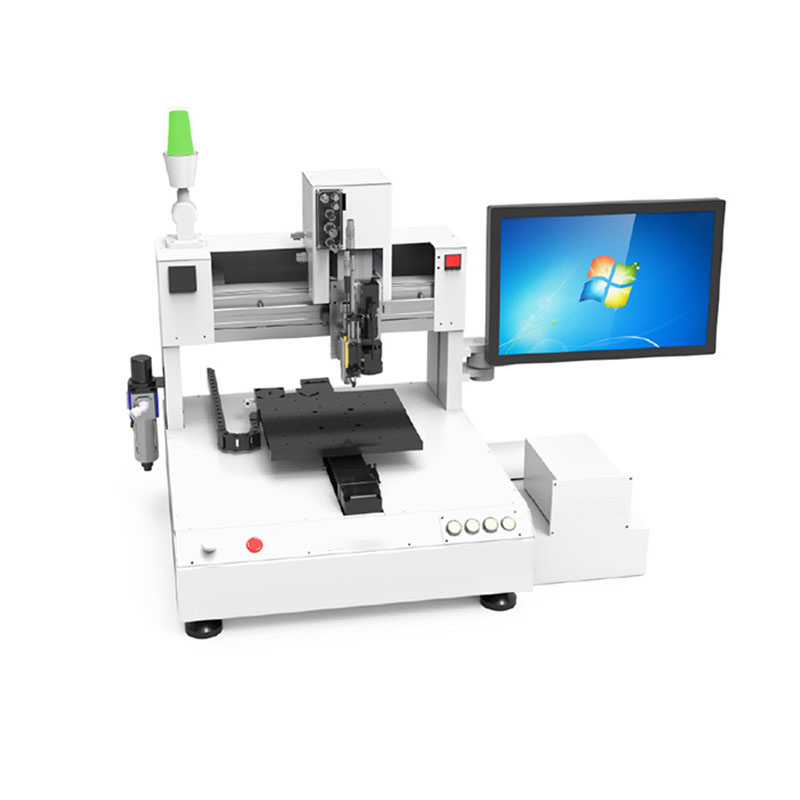

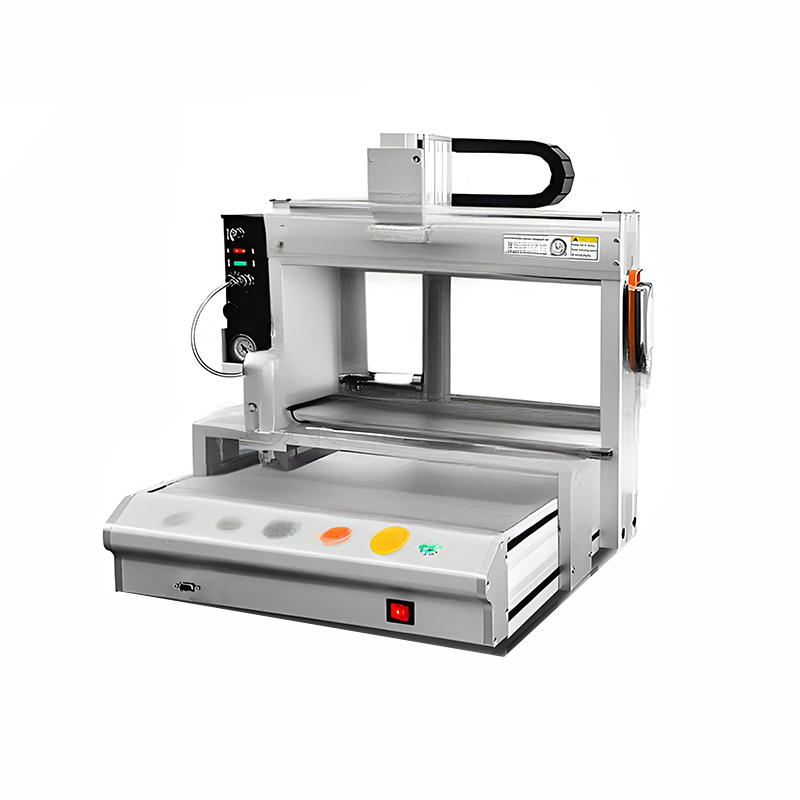

High Precision Cost-Efficient Automatic Silicone Dispensing Equipment

⭐ Standard Features

Computer Control, Windows OS
CCD visual positioning system
Servo Motor
UPS and voltage stabilizer
ESD grounding point
CE certified

🛠️ Optional Features

• Automatic constant temperature system to ensure fluid consistency.

• Laser Height Detection to calibrate Z-axis automatically for component deformation.

💡 Product Advantage

The TSV Series desktop dispensing system is applicable for LENS dispensing, FPC package, SMT red glue dispensing, solder paste dispensing, LED package, fingerprint identification module, etc.

📊 Technical Specifications

Specifications	TSV-300	HSV-300
Dimension (mm)	L810×W660×H760	L900×W650×H1460
Weight (kg)	105	190
Control	Industrial personal computer + motion control card
Software	Anda control software + windows system
Programming	Visual programming
Spindle drive	Servo motor + module
Working area (mm)	X:260 ; Y:260 ; Z:100
Max. Moving speed	800 mm/s
Repeatability	± 0.025 mm
Safety standards	CE

🌍 Global Presence

Our equipment is currently imported and exported to over 30 countries, with over 200 customers and suppliers, aiming to control the procurement of the highest cost-effective products. We specialize in semiconductor industry equipment integration.

Main Product Line: Die Bonder, Wire Bonding, Laser Marking (ID IC Wafer), Laser Grooving, Laser Cutting, Automatic Dicing Saw Machine, and Automatic Silicone Dispensing Equipment.

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: How to choose a suitable machine?

A1: You can provide the workpiece material, size, and the required machine functions. We will recommend the most suitable machine based on our extensive industry experience.

Q2: What is the warranty period for the equipment?

A2: We offer a one-year warranty along with 24-hour online professional technical support to ensure your operations run smoothly.

Q3: Why choose our dispensing equipment?

A3: We provide professional OEM/ODM/Designing services and focus on high-precision, cost-efficient solutions for the semiconductor industry.

Q4: What materials can this dispensing machine handle?

A4: The TSV series is designed for various fluids including silicone, SMT red glue, solder paste, and other materials used in LED and FPC packaging.

Q5: Does the machine include a visual positioning system?

A5: Yes, the standard configuration includes a CCD visual positioning system for high-accuracy dispensing.

Q6: What are the main applications of this series?

A6: It is widely used for LENS dispensing, SMT processes, LED packaging, and fingerprint identification module assembly.
